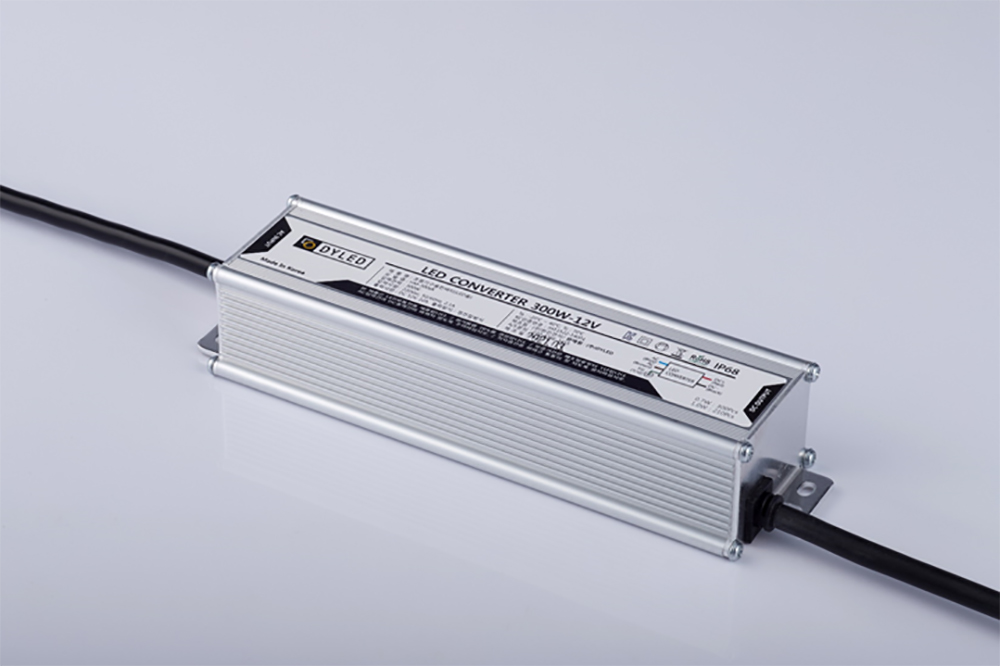

SMPS Korea
SMPS-12V Spec
| Model | In Put | Out Put | efficiency | Size(mm) | Certification | ||
|---|---|---|---|---|---|---|---|
| Voltage | Frequency | Voltage | Current | ||||
| 30W-12V-DYLED | AC 220V | 60Hz | DC 12V | 2.2A | 84% | 165 x 27 x 19.5 | KC |
| 60W-12V-DYLED | 4.6A | 93% | 174 x 35 x 18.5 | ||||
| 100W-12V-DYLED | 7.5A | 92% | 151 x 35 x 26 | ||||
| 150W-12V-DYLED | 12.5A | 93% | 118 x 54 x 36 | ||||
| 200W-12V-DYLED | 15A | 93% | 118 x 54 x 36 | ||||
| 300W-12V-DYLED | 21A | 93% | 168 x 54 x 36 | ||||
| 400W-12V-DYLED | 31A | 93% | 216 x 68 x 43 | ||||
| 500W-12V-DYLED | 33A | 93% | 216 x 68 x 43 | ||||
SMPS-24V Spec
| Model | In Put | Out Put | efficiency | Size(mm) | Certification | ||
|---|---|---|---|---|---|---|---|
| Voltage | Frequency | Voltage | Current | ||||
| 30W-12V-DYLED | AC 220V | 60Hz | DC 24V | 1.1A | 84% | 165 x 27 x 19.5 | KC |
| 60W-12V-DYLED | 2.3A | 93% | 174 x 35 x 18.5 | ||||
| 100W-12V-DYLED | 3.75A | 92% | 151 x 35 x 26 | ||||
| 150W-12V-DYLED | 6.25A | 93% | 118 x 54 x 36 | ||||
| 200W-12V-DYLED | 7.5A | 93% | 118 x 54 x 36 | ||||
| 300W-12V-DYLED | 10.5A | 93% | 168 x 54 x 36 | ||||
| 400W-12V-DYLED | 15.5A | 93% | 216 x 68 x 43 | ||||
| 500W-12V-DYLED | 156.5A | 93% | 216 x 68 x 43 | ||||
