Floodlight

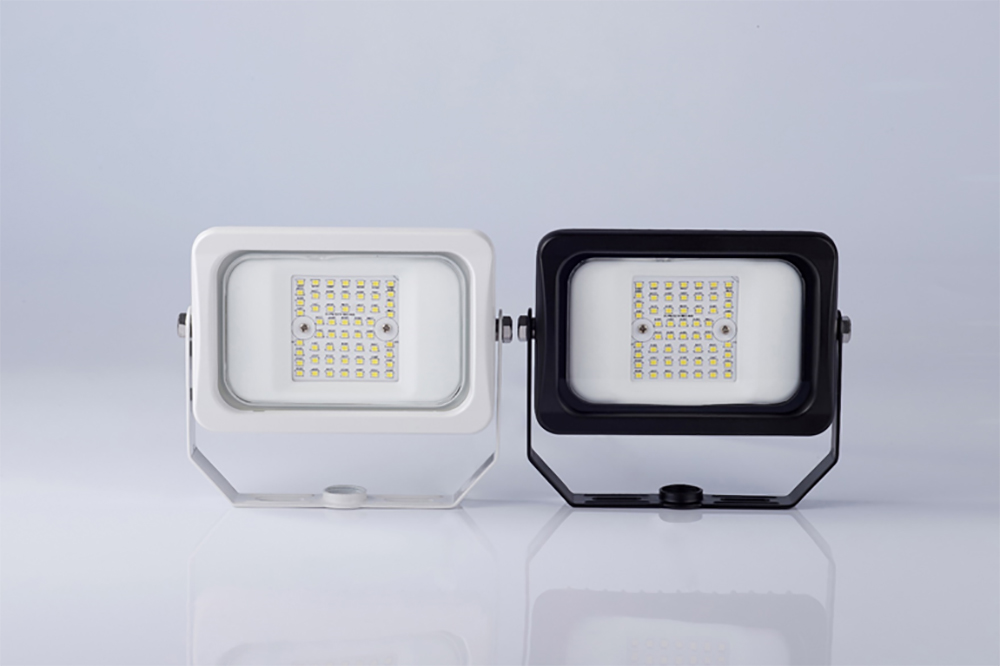

Floodlight 30W

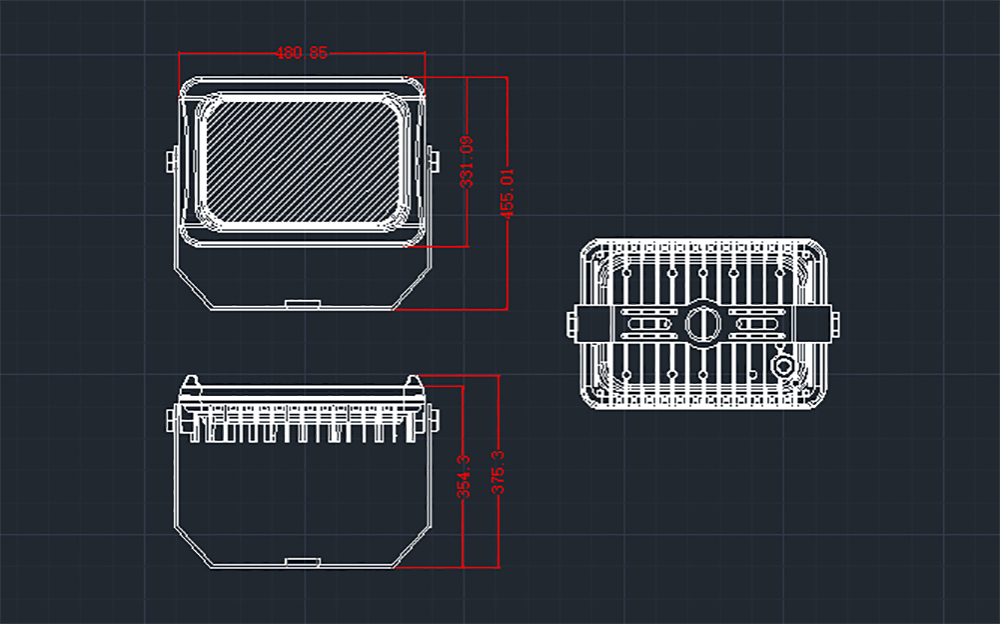

Dimension

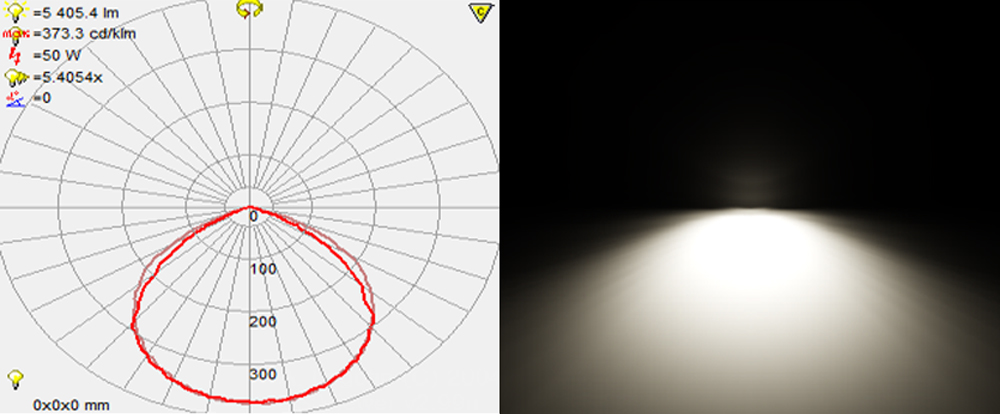

Luminous Intensity Distribution
Specification
| Item | Value | unit | |
|---|---|---|---|
| Model no | W30 | W57 | - |
| Input Power | 30W ± 10% | W | |
| Input Voltage | 220 | Vac | |
| Input Current | 0.135A (Typical) | A | |
| Operating Frequency | 50/60 | Hz | |
| Dimming Type | Non | - | |
| Power Factor | > 0.9 | - | |
| Surge Protection | L-N:2K / L,N-PE:2.5K | Vac | |
| Luminous Flux | 2,850 | 2,850 | lm |
| Luminance Efficiency | 95 | 95 | lm/W |
| CCT(K), ±7% | 3000 | 5700 | K |
| CRI (Ra) | >80 | >80 | Ra |
| LED | SMD 2835 | - | |
| Dimension | 165 x 110 x 125 | mm | |
| Weight | 1.2 | Kg | |
| Working Temperature Range | -20 ~ 50 | ℃ | |
| Waterproof | IP65 | - | |
| Life Time | > 30,000 | Hour | |
| Housing | Aluminum die Casting | - | |
| Housing Color | White and Black | - | |
| Certificate | KC | - | |
